12.5 mm SMT tape jumper conductor
12.5 mm SMT tape jumper conductor
  • 12.5 mm SMT tape jumper conductor
  • 12.5 mm SMT tape jumper conductor
  • 12.5 mm SMT tape jumper conductor
  • 12.5 mm SMT tape jumper conductor

12.5 mm SMT tape jumper conductor

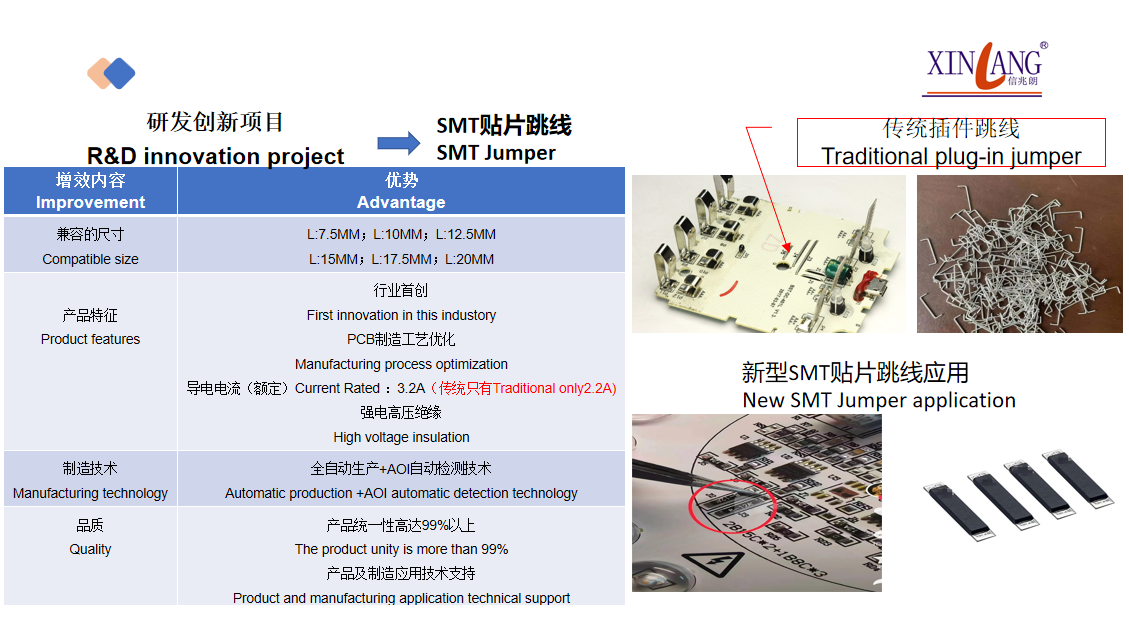

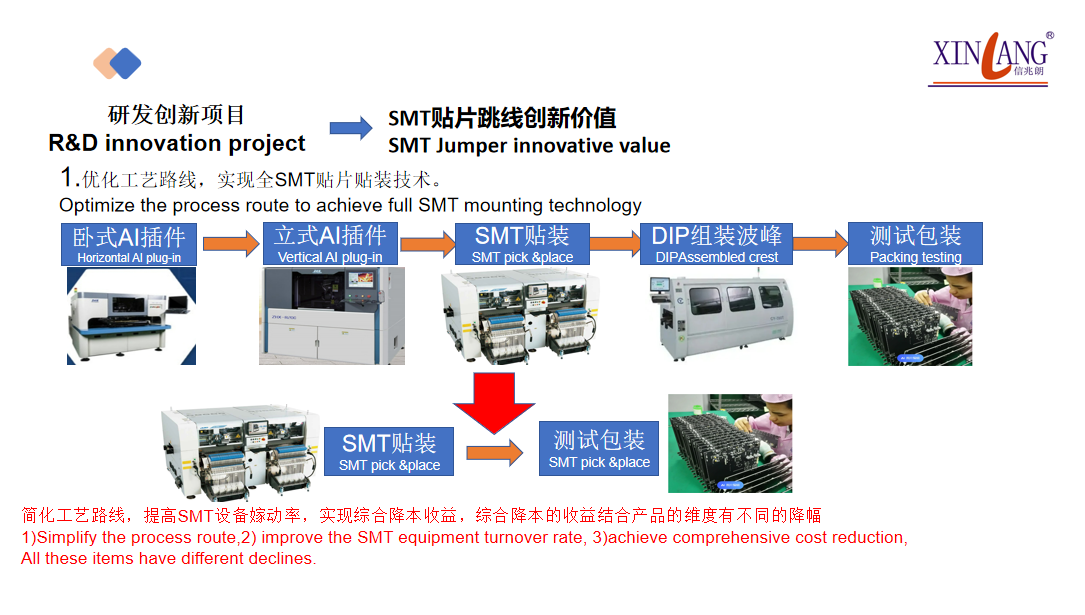

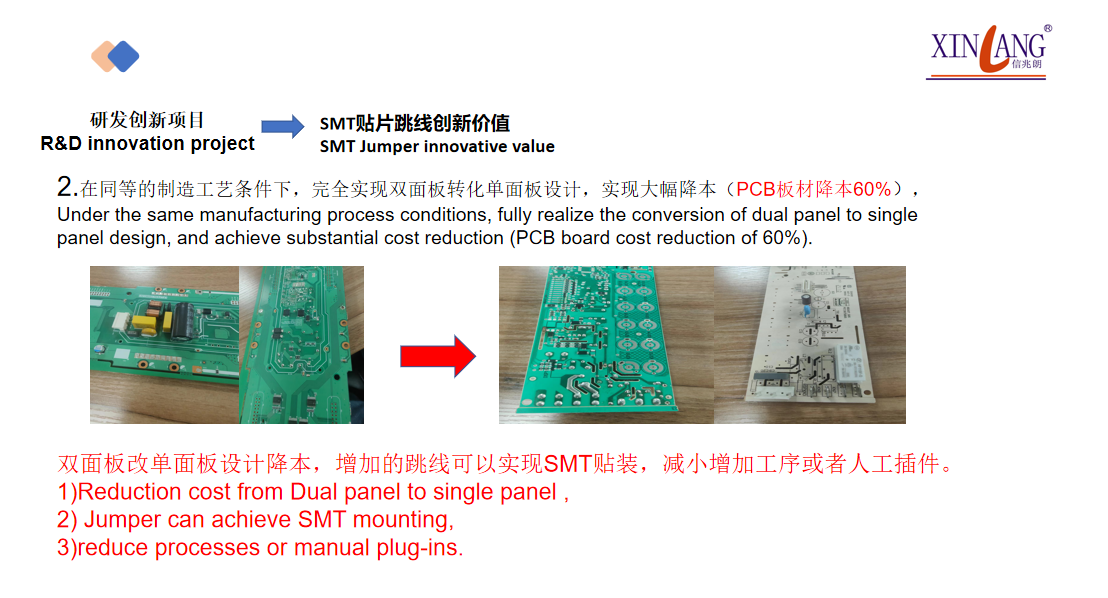

The SMT jumper wire is a utility model PCB jumper which replaces the traditional horizontal plug-in board jumper. The new SMT jumper is in a sheet shape and is easier to be mount on the PCB with the machine than round wire shape.This new product effectively solves the problem of single board design which needs to cross a plurality of circuits in the electronic. Effectively help the factory to achieve automated production, simplify the production process, greatly improve product quality and production efficiency, save time, and reduce production costs.

Contact Us Send Inquiry

Product Details
Parameter
Inquiry

Surface Mounted Jumper Wires | Flexible Jumpers For SMT - Xinzhaolang

Surface Mounted Jumper WiresSMT Jumper Wire SupplierSMT Jumper Wire FactoryFlexible Jumpers For SMTSurface Mount JumpersSMT Jumper Wire Manufacturer


pcb touch buttons using springs
项目ITEM 测试条件Test Conditions 表现 Performance
导体内阻
Conductor internal resistance
测试跳线两端组值
Test the values of the groups at both ends of the jumper
5 mΩ
工作电流
Operating current
230V AC电压下,可承载工作电流3A
Under 230V AC voltage, it can carry 3A working current

绝缘电阻>500MΩ
Insulation resistance> 500MΩ

输入1000V AC电压1分钟,绝缘电阻大于500MΩ,按以下接触方法测试:
Input 1000V AC voltage for 1 minute, insulation resistance greater than 500MΩ, according to the following contact method:
  1. 塑胶体与针脚之间
(1) Between the plastic body and terminals
无击穿
No breakdown
耐电压(电气强度)
Withstand voltage (electrical strength)

输入AC  230V50-60HZ电压,泄露电流为0.5mA,持续1分钟,,按以下方法测试:
Input AC 230V (50-60HZ) voltage, leakage current is 0.5mA, for 1 minute, test as follows:
  1. 塑胶体与针脚之间
(1) Between the plastic body and terminals
无击穿,无闪络
No breakdown, no flashover
